The Linux kernel is a massive, living codebase. Every day, developers fix bugs, but often these bugs follow repetitive "anti-patterns"—missing locks, incorrect error handling, or uninitialized variables. LinuxGuard began with a simple question: Can we teach an AI to read a bug-fix commit and write a static analysis tool to prevent that bug forever?

Figure 1: The Vision. Utilizing LLMs to bridge the gap between unstructured commit messages and structured AST Matchers.

Our initial attempt was straightforward (the "Naive Pipeline"). We fed the diff and commit message directly into an LLM (like GPT-4) and asked it to "write a Clang AST Matcher."

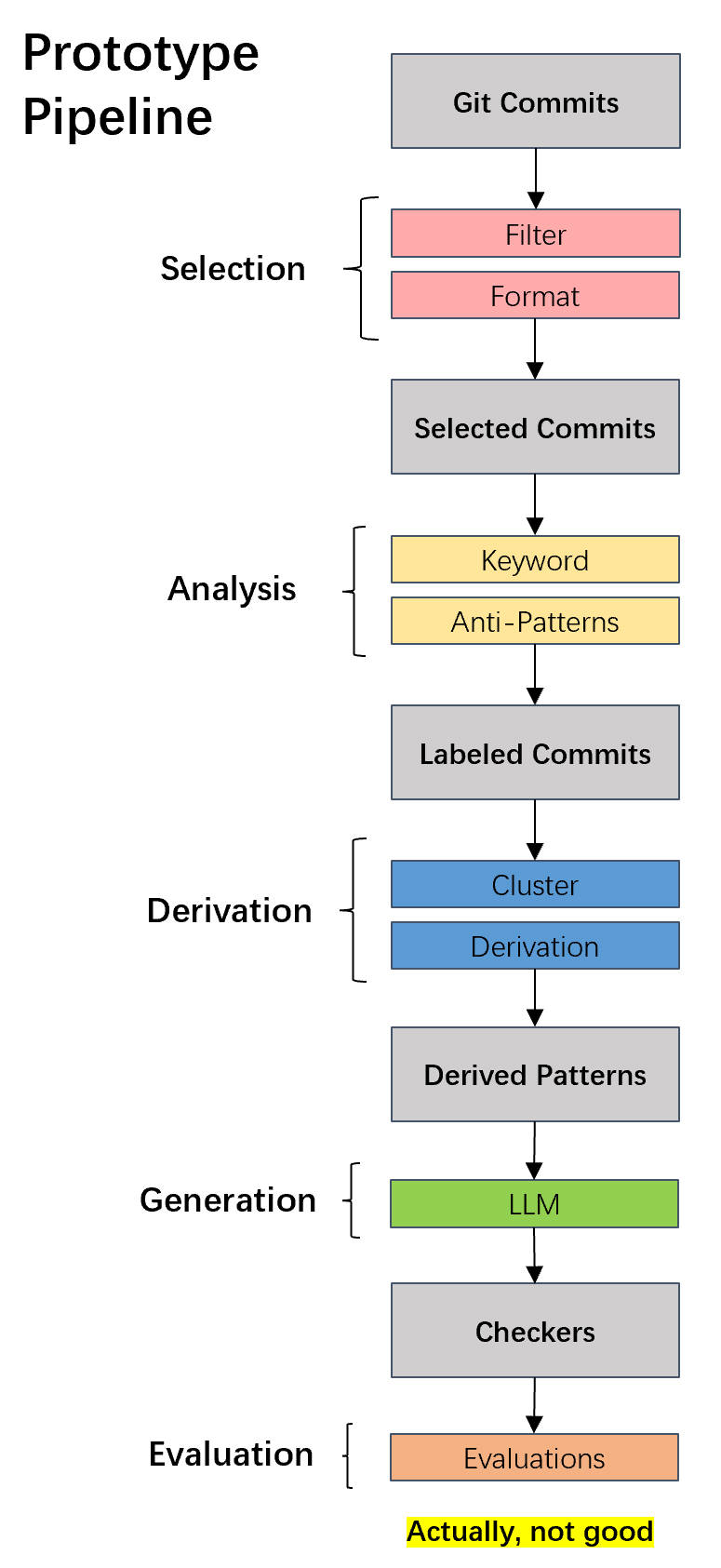

Figure 2: The Naive Pipeline. A simple single-pass prompt that often led to compilation errors.

The Result? Failure. The generated C++ code rarely compiled. The LLM would hallucinate Clang APIs that didn't exist or write matchers that were syntactically correct but semantically meaningless. We realized that a single inference step was insufficient for the complexity of the Clang AST.

Faced with these failures, we had to rethink our approach. We analyzed why the model was failing and realized there was a reasoning gap. A human developer doesn't just "output code"; they analyze the bug, formulate a logic, and then iteratively refine their code.

We decided to restructure the pipeline to mimic this cognitive process. The diagram below illustrates our thought process: moving from "direct generation" to a layered approach that integrates reasoning (Chain-of-Thought) and feedback (Self-Correction).

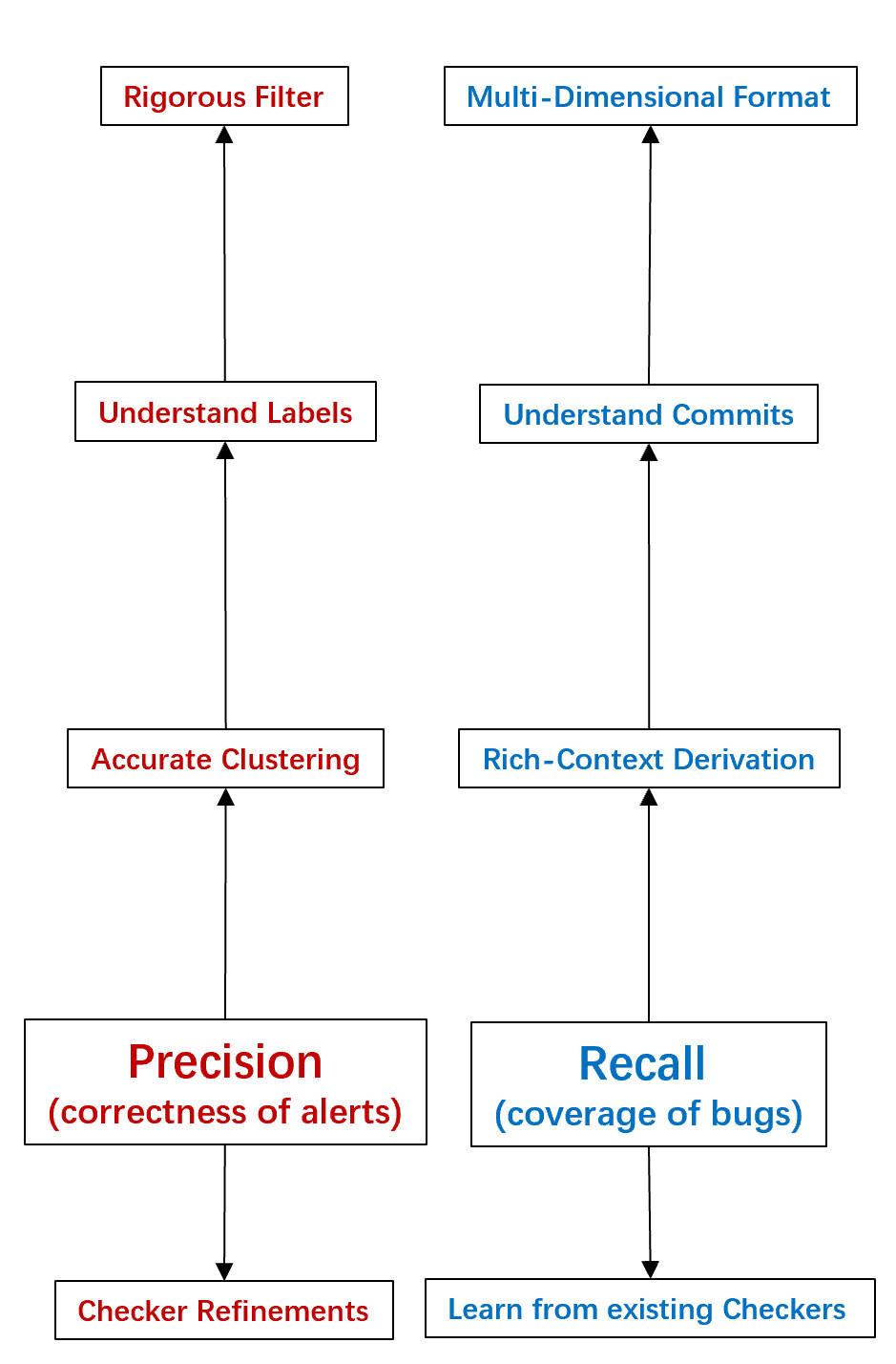

Figure 3: Strategic Evolution. Our reasoning process for evolving the pipeline from simple prompting to a robust, multi-agent system.

Guided by the strategy above, we implemented two key architectural improvements that transformed LinuxGuard into a working tool.

We decoupled analysis from generation. We forced the model to "think" before it coded: first, explain why the code is buggy; second, describe the pattern in plain English; and only then, generate the C++ matcher code.

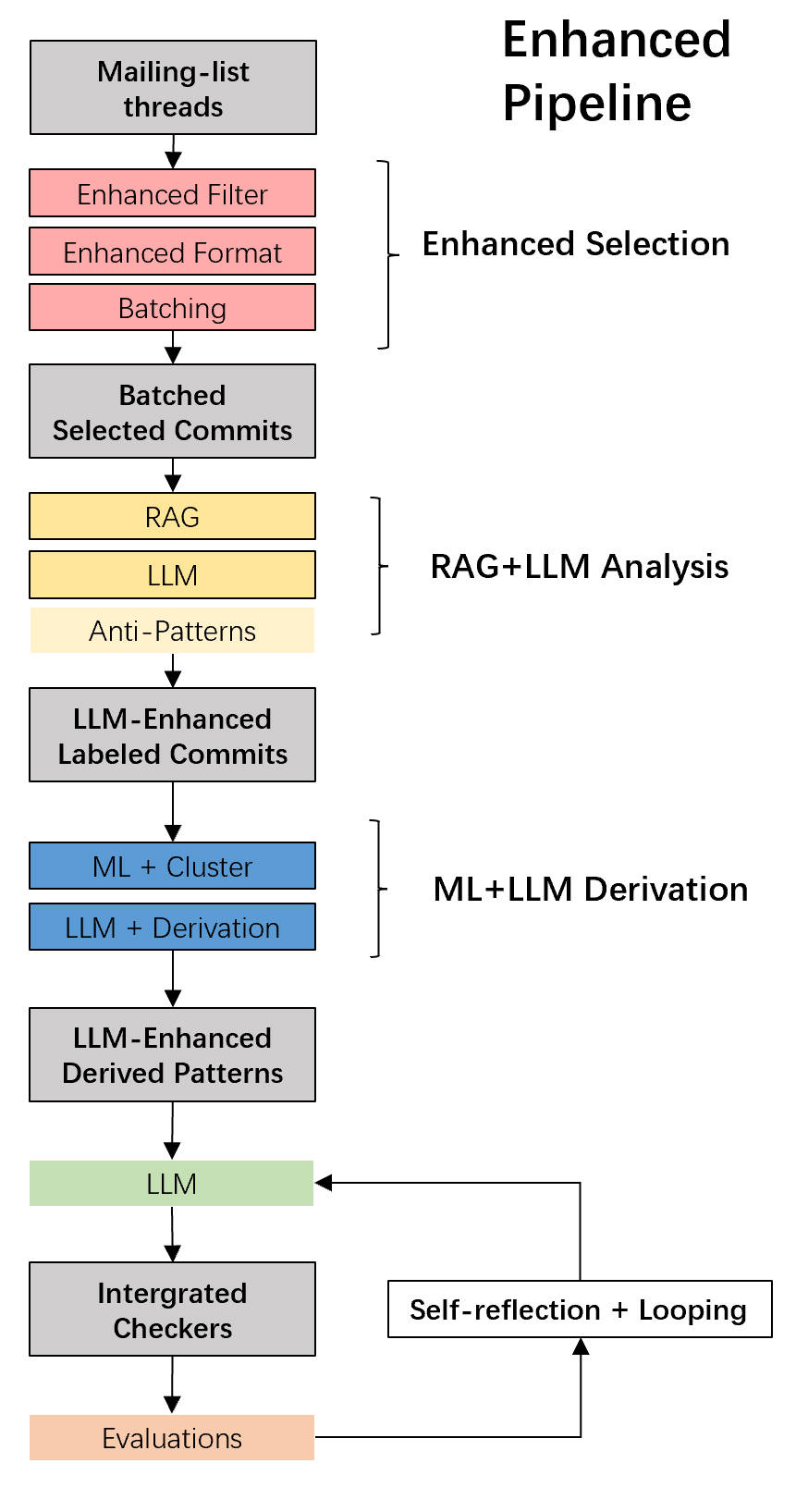

Figure 4: Chain-of-Thought. By explicitly separating reasoning from coding, we significantly improved semantic accuracy.

To handle syntax errors, we introduced a Repair Agent. When the Clang compiler throws an error, we capture the `stderr` output and feed it back to the LLM, creating a closed-loop system that iterates until the checker compiles successfully.

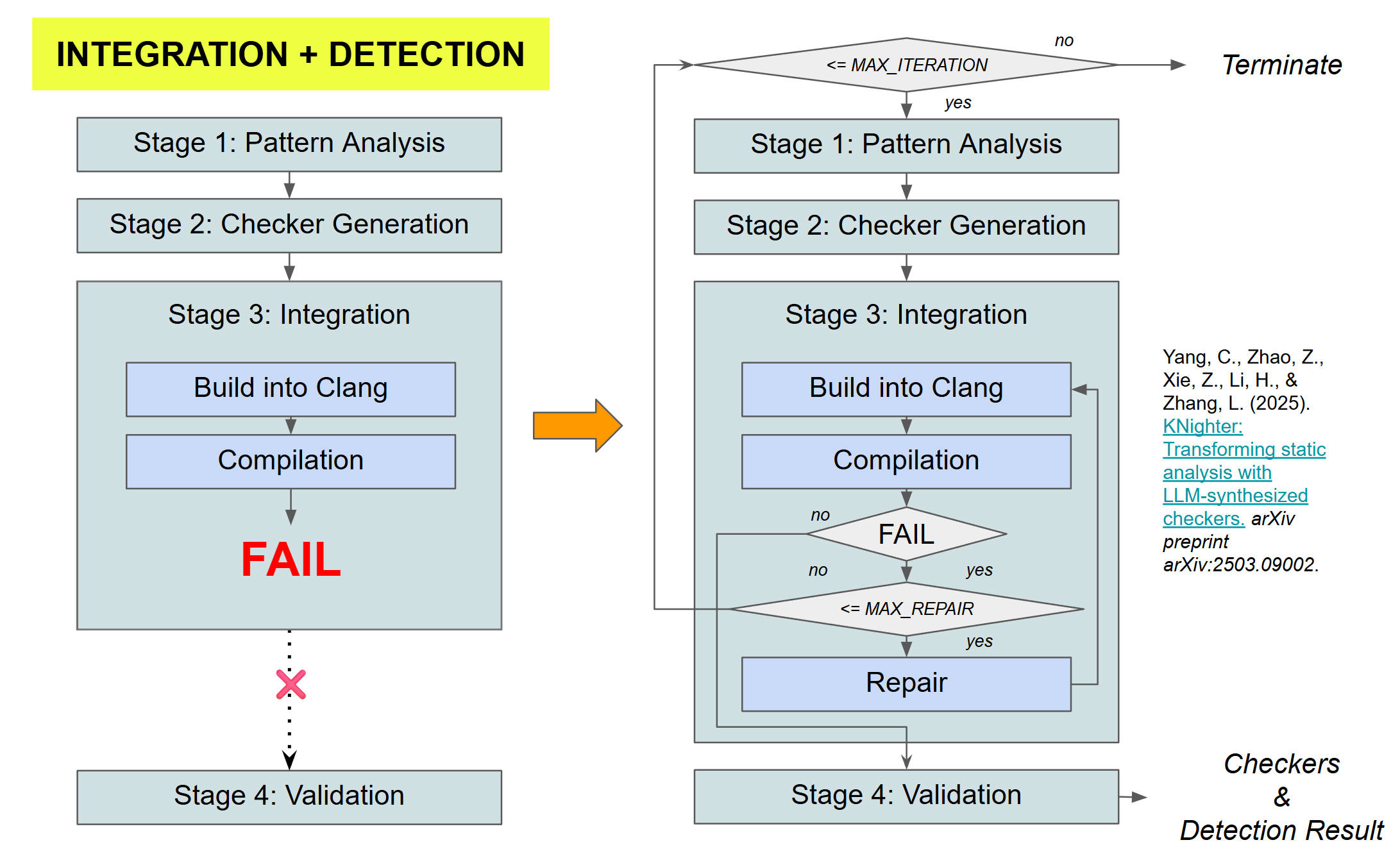

Figure 5: Self-Healing. The system automatically fixes compilation errors without human intervention.

Finally, the generated checkers were not just theoretical. We built a harness that injects these dynamically generated matchers into the standard Linux kernel build process as full clang-tidy plugins, enabling us to scan historical kernel versions.

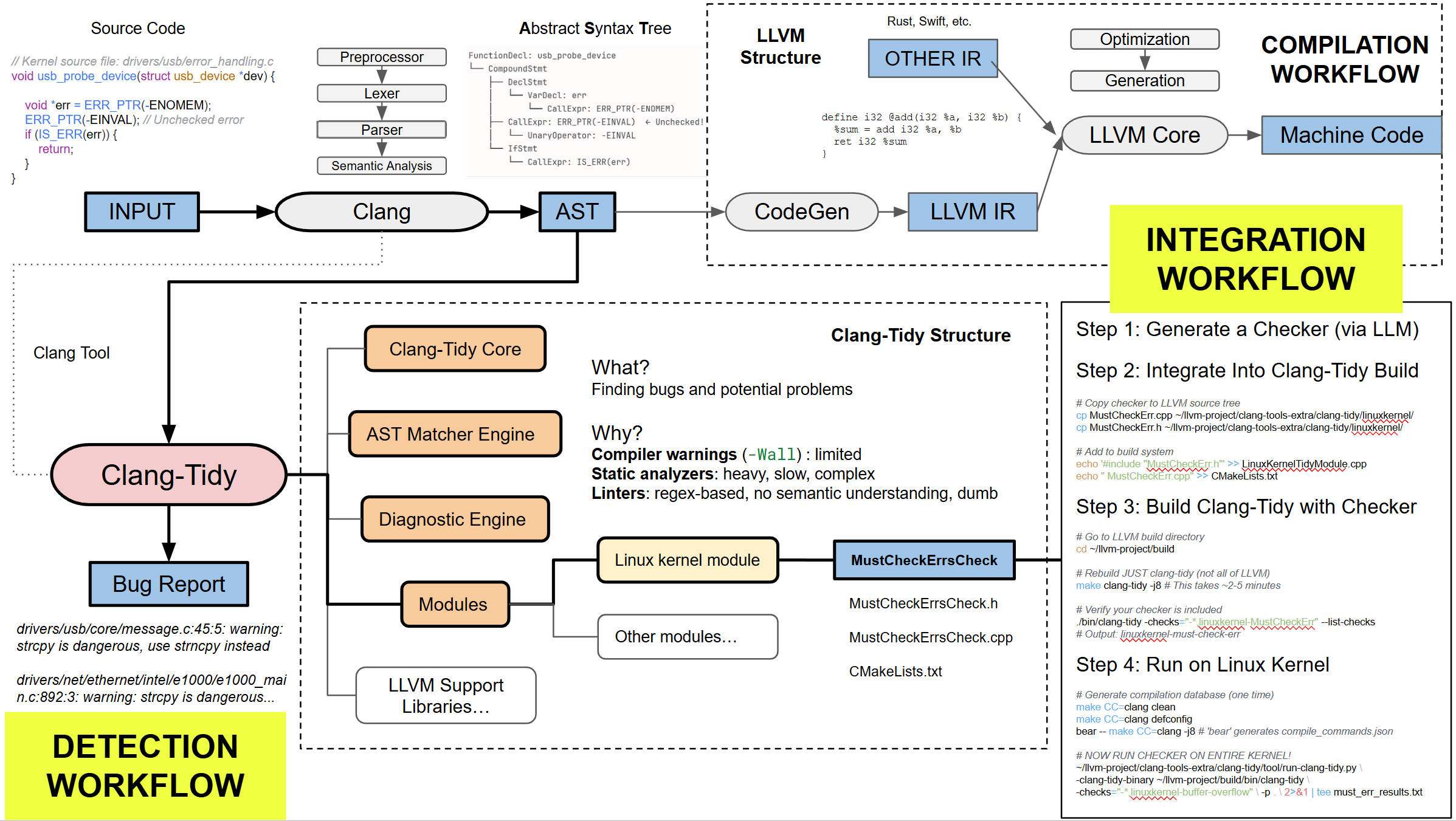

Figure 6: Real-world Integration. Embedding our AI-generated tools into the LLVM/Clang ecosystem.

At the heart of LinuxGuard lies the Orchestrator, a Python-based engine that manages the entire lifecycle of a checker. The excerpt below highlights the core generate_checker loop, which drives the Chain-of-Thought generation and manages the self-healing compilation process.

class PipelineOrchestrator:
    """Orchestrates the complete pipeline with iterative generation and repair."""

    def generate_checker(self, commit_hash: str) -> Optional[Dict]:
        # ... [Initial setup and context loading omitted] ...

        for iteration in range(1, self.max_iterations + 1):
            print(f"━━━ Iteration {iteration}/{self.max_iterations} ━━━")

            # Stage 1: Multi-commit Pattern Extraction
            # We aggregate insights from multiple similar commits to avoid overfitting
            candidate_commits = self.collect_candidate_commits(commit_hash)
            analysis_result = self.analyze_commits(candidate_commits)

            if not analysis_result:
                continue

            pattern, guidance = analysis_result

            # Stage 2 & 3: Synthesis & Implementation (Chain-of-Thought)
            # The model first plans the logic (Module 1) then writes the C++ (Module 2)
            checker_info = self.implement_checker(pattern, guidance)

            # Stage 4: Build & Repair Loop (Self-Healing)
            build_success = False
            for attempt in range(1, self.max_repair_attempts + 1):

                # Try to compile the generated Clang plugin
                build_success, errors = self.build_checker(checker_info)

                if build_success:
                    break

                # If build fails, feed stderr back to the LLM for repair
                print(f"🔧 Attempting repair ({attempt}/{self.max_repair_attempts})...")
                repaired = self.repair_checker(checker_info, errors, pattern)

                if not repaired:
                    break

            if not build_success:
                continue # Retry with a fresh generation if repair fails

            # Stage 5: Validation
            # Run the compiled checker on historical kernels to verify findings
            is_valid = self.validate_checker(checker_info, commit_hash)

            if is_valid:
                print("✓ SUCCESS: Valid checker generated!")
                return checker_info

        return None

    def repair_checker(self, checker_info: Dict, errors: str, pattern: Dict) -> bool:
        """Use LLM to repair compilation errors by analyzing clang diagnostic output."""

        # Load current (broken) source code
        h_code, cpp_code = self.load_checker_source(checker_info)

        # Create repair prompt with the specific compiler errors
        prompt = build_repair_prompt(
            code=(h_code, cpp_code),
            compiler_errors=errors,
            context=pattern
        )

        # Ask LLM to fix the syntax/API issues
        response = self.repair_model.generate_content(prompt)

        # ... [Code extraction and file saving omitted] ...

        return True
